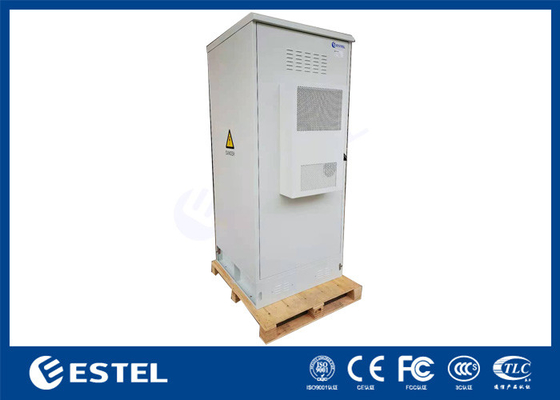

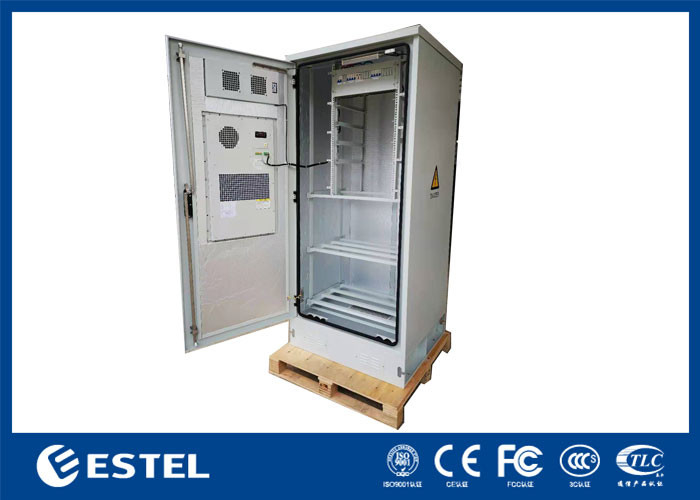

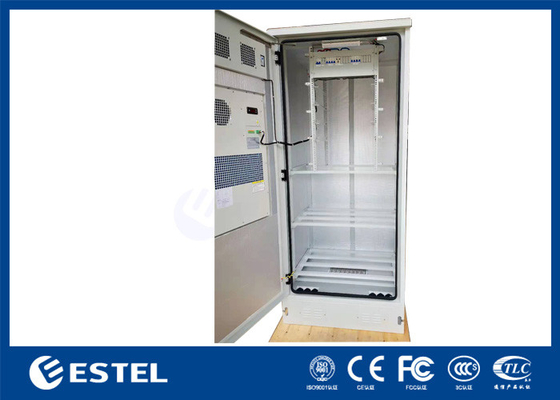

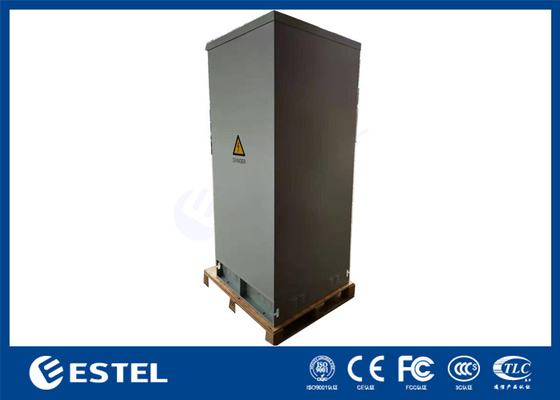

IP55 आउटडोर टेलीकॉम कैबिनेट 19 इंच रैक पावर डिस्ट्रीब्यूशन यूनिट और बैटरी शेल्फ के साथ
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | ESTEL |
| प्रमाणन: | ISO9001, CE, RoHs |
| मॉडल संख्या: | ET9090210C-20U |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 सेट |
|---|---|
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | फूस के साथ लकड़ी का मामला |
| प्रसव के समय: | 4-6 सप्ताह |
| भुगतान शर्तें: | वेस्टर्न यूनियन, टी/टी |
| आपूर्ति की क्षमता: | 4000 पीसीएस/महीना |
|
विस्तार जानकारी |
|||
| सामग्री: | जस्ती स्टील, गर्मी इन्सुलेशन के साथ एकल दीवार | ठंडा: | एयर कंडीशनर और पंखे |
|---|---|---|---|
| विशेषता: | विद्युत वितरण इकाई के साथ | पार्ट्स: | स्विच के साथ एलईडी लाइटें |
| सुरक्षा प्रवेश: | आईपी55 | द्वार: | 1 सामने का दरवाज़ा |
| प्रमुखता देना: | 19 इंच का बाहरी दूरसंचार कैबिनेट,बैटरी शेल्फ आउटडोर दूरसंचार कैबिनेट,IP55 आउटडोर दूरसंचार कैबिनेट |
||
उत्पाद विवरण
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf Application:
- Satellite Communication
- Wireless Backhaul
- Cable Television
- Navigation & Positioning
- Military Installation
- Port Security
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf Features:
- Front access to the inside equipment
- IP level: IP55
- Standard 19“ rack for installation
- Outdoor anti corrosion powder coating
- The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment
- Cabinet cooling: 1500w air conditioner
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding
- High integration, compact structure, easy installation and migration on later stage
- Anti-theft three point lock, excellent keyhole protection device
- All the screws&nuts are stainless steel material
- Support full design according to customer’s requirement
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
IP55 Outdoor Telecom Cabinet Specification:
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension:W×D×H 900×900×2100mm (2)One compartment: including 19” rack. (3)With one front door , with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 1500W Power Supply: 110VAC, 60Hz |
| 3 |
Power Distribution Unit |
1 | Set |
Grade B Lightning Proof AC Input: 63A/2P ×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4. Height: 4U |
| 4 | Fan | 2 | Set | DC48V |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | LED Lamp | 1 | PC | DC48V |
| 7 | Package | 1 | Set | Wooden Case |
PDU Principle Diagram
Cabinet Diagram:
